To "pop someone's balloon" Is a Quebecan expression that means to bring that person back to reality. And that's exactly what today's challenge does! It brings us back to the harsh reality: that even a game for children like Balloon Pop is hard to code. Another more reason to tackle this challenge head on!
Start !Before tackling this challenge, we recommend that you have previously completed the two following challenges:
First thing, before starting to work on any sort of p5.js project: sign in to your account by clicking on "Log in".
Rename your project by clicking on the little pencil .
It may seem silly to say... but dont forget to sign in to your account before starting to work! This will allow you to save your work (your sketches) for free on the servers of p5.js. If you choose not to do this, you must then be prepared to download your files locally (on your computer) and if anything happens to that computer, you risk loosing your work 😢
Our goal for the first part of the challenge is to make balloons of different colors appear and disappear on our canvas.
🤔 How do we draw balloons in p5.js? Remember that you should always start with the simplest solution! Once it works, you can make your code more sophisticated.
In the challenge Ça va bien
aller, we saw how to draw circles in different sizes and colors in p5.js, so we can use the function
circle() to draw a red balloon. It won't be a very realistic balloon, but
it's a start!
Where should we use the function circle() in our code? In the function
setup()? In the function draw()?
Remember, the function setup() is only executed once, after you press
PLAY while on the other hand, the function draw() is
called multiple times each second.
In the function draw(), since the coordinates of our balloon will
change during the execution of the program.
Your code could be something like this:
//...
function draw() {
background(220);
fill("red");
circle(100, 100, 60);
}
For the string of your balloon, look in the documentation of p5.js a function that could draw a line.
The key word is line...
If you choose the same coordinates for the origin point of your line as you did for the circle, it will result in something funky:
line(100 , 100, 100, 250);
You want the line to start where the red circle ends. You must therefore "lower" the line, that is to say
change its position on the axis of y.
We are now going to move our ball everywhere on our canvas.
The new position of the ball will be determined at random by the computer. Do you remember the function that allowed us to randomly choose an adjective, in the challenge: En 2020, je serai...?
It was the function random(). You can also use this function to choose a
random number. If I want a random number between 0 and 400 (because my canvas is 400 pixels tall), I can
code this: random(0,400)
Instead of giving our balloon the same X position (100) all the time, we can now choose an X position at
random: circle(random(0, 400), 100, 60);

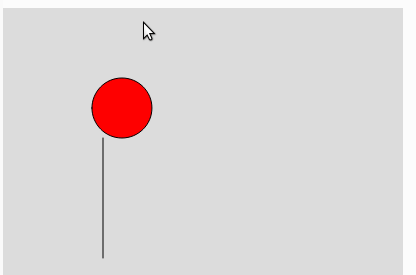

The result is very spooky:
View (careful, it hurts your eyes)
Two problems:
Let's start with the rod. Its position on the x axis must follow that of the ball. That said, if we write the following code, it doesn't quite work:
line(random(0, 400) , 130, random(0, 400), 250);

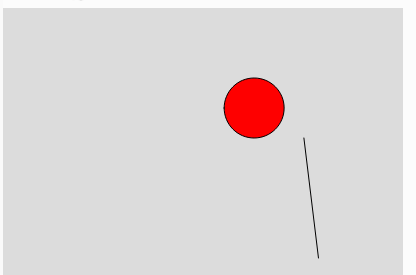

View (warning, it also hurts your eyes)
The string does move randomly, but it does not stay below the balloon! In fact, the computer chooses a first X value for the balloon (for example 150). Then it chooses again a value at random for the value for X from the top of the string (248, for example). And finally, the computer still randomly chooses a third X value for the bottom of the string (5, for example).
If you want the string to be vertical, the value of X for the top and bottom of the string must be the same. This code works:
line(100, 100, 100, 250);but not this one:
line(248, 100, 5, 250);Solution?
The computer must choose only one position for X and remember it in order to reuse it. And when someone says "remember" in programming, they say...
We will store the value for X in a variable and re-use it:
let positionX = random(0, 400);
circle(positionX, 100, 60);
line(positionX, 130, positionX, 250);
YESS! The string follows the balloon! 💪
Inspire yourself from step 9 in the challenge of the predictions to slow down the balloon.
Our basic code works, so we can have fun making it more sophisticated. What would be nice is to work on the appearance of the circle so that it has a more realistic balloon shape.
Instead of using a circle, you can use an ellipse. Consult the documentation of p5.js to draw ellipses.
The idea is to use two ellipses: one for the balloon itself, and the other (much smaller) for its knot.
Some ways to help you:
noStroke()noStroke() your string will probably
disappear. You can bring back the string with the function stroke()
How can we make the balloon change randomly between three colors (red, blue and green, for example)?
